AirLite

Description

We have recognized the latest generation of pipingsystem AirLite all-aluminum air piping system. We recognize the significance safety and reliability that the air piping system plays in the plants. AirLite aluminum meets the requirements of several industry certifications and standards, ensuring the highest level of safety and quality. With confidence in its patented design and quality management AirLite honorably manufactured products are guaranteed with 15years of quality assurance.

Install a compressed Air Pipe System Never So Easy!

Offers easy and fast installation, zero-leakage, low pressure drop, clean air source, and more..

Push-In To Connect For Dn20-Dn50

Just to push the pipe into the connector, fasten screws to finish a connection

Grooved Connections Extension For Larger Diameter

Make grooved lugs for Dn63-Dn300, for reliable connection of large diameters.

Leak Free

Leak Free guarantee due to rust consistent rigid aluminum alloy materials and sealing technologies.

Clean Air Source

ISO8573-1 Quality compressed air source assured by AirLite aluminum piping system. Save your production line, save your products.

Certificates

AirLite aluminum air pipe system was certified to meet CE/PED/2014/68/EU,ASME B31.1, B31.3 & B31.9, TUV, ISO standards.

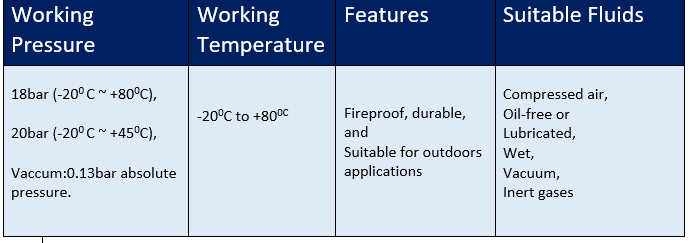

AirLite Technical Datasheet

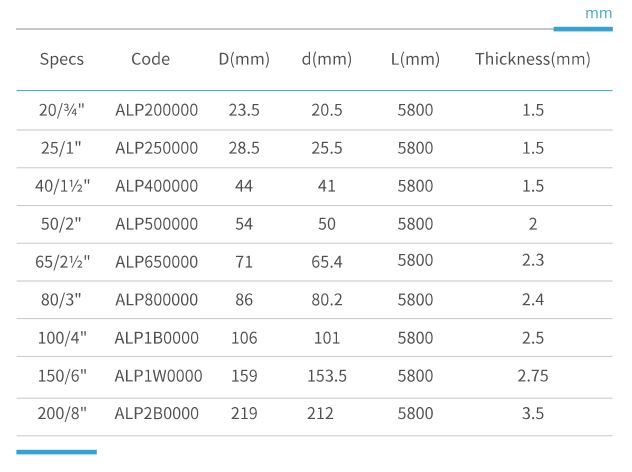

AirLite Pipe Specifications

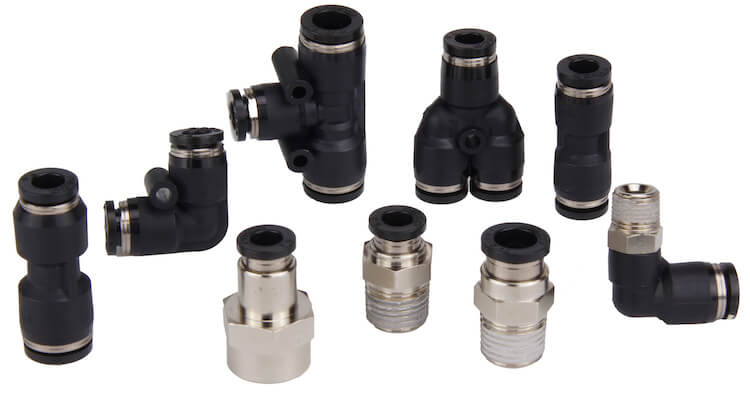

pushfittings

Push

Fittings

Description

Product Ranges :- Male Connectors Female Connectors BSPT Push in Fittings G Thread Push-in Fittings Speed Controllers Hand Valves Check Valves Flow Control Valves
We have of widest ranges of push fittings imported from leading manufacturer.
We supply cost-effective push fittings without compromising the quality of the product..
We have push fittings ranging from 4mm to 16mm, with working pressure upto 12 Bar and temperature upto 80'C

FRLfittings

FRL

Description

An FRL combines a filter, regulator, and lubricator into one component to keep air compressor systems in optimal working condition.

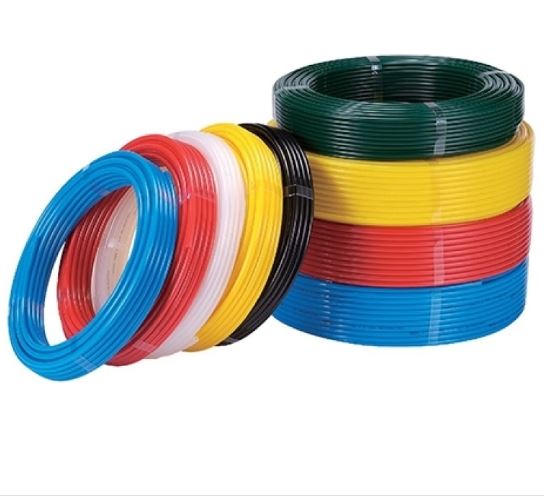

Thermoplastic

Tubes

Description

Thermoplastics are a family of polymers with numerous industrial applications. Known for durability, lightness, and relatively low production costs, thermoplastics can be melted and recast almost indefinitely. Once heated, they can be moulded or extruded into a wide variety of shapes, which then harden upon cooling.

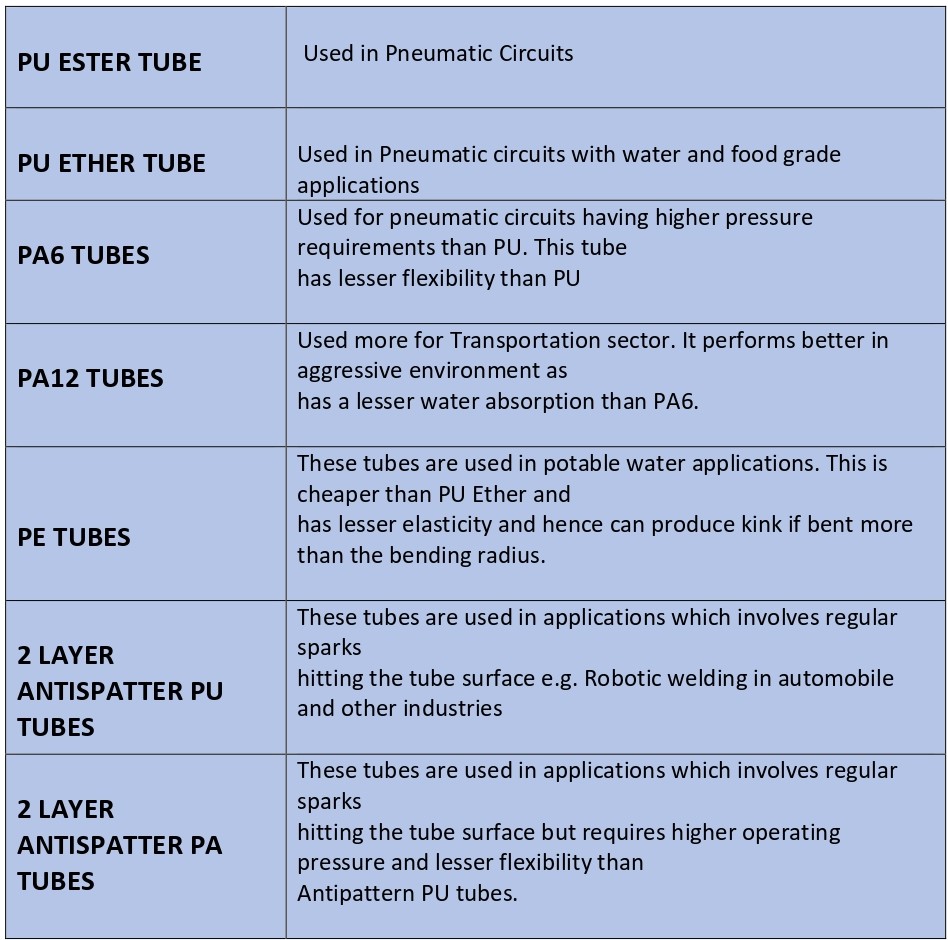

Product Ranges :-

1.PU Ester Tubes :

Used in Pneumatic Circuits

2.Ether Tubes :

Used in Pneumatic circuits with water and food grade applications.

3.PA6 Tubes :

Used for pneumatic circuits having higher pressure requirements than PU. This tube has lesser flexibility than PU

4. PA12 tubes :

Used more for Transportation sector. It performs better in aggressive environment as has a lesser water absorption than PA6.

5.PE tubes :

These tubes are used in potable water applications. This is cheaper than PU Ether and has lesser elasticity and hence can produce kink if bent more than the bending radius.

6.2 layer Antispatter PU tubes :

These tubes are used in applications which involves regular sparks hitting the tube surface e.g. Robotic welding in automobile and other industries

7. 2 layer Antispatter PA tubes :

These tubes are used in applications which involves regular sparks hitting the tube surface but requires higher operating pressure and lesser flexibility than Antispatter PU tubes.

Why AirLite

Reliable & Durable

Fast & Easy

Leak-free performance

Time & Cost Savings

Universal Compatible

Clean

15 Years Quality Assurance and Guarantee
